Tutorial 5: Using a Custom Model

This tutorial will show you how you can use custom Model classes with MindFusion.DataViews for Silverlight.

1. Getting started

Follow step 1 from Tutorial 1. Add the MindFusion.DataViews.Silverlight controls to Visual Studio Toolbox (See step 2 in Tutorial 1). Manually reference the MindFusion.DataViews.Silverlight.dll by clicking Project -> Add Reference... -> Browse and navigating to the file (usually located in the products installation folder).

2. Creating custom model classes

2.1 MyActivity class

In Visual Studio click Project -> Add Class... and name the new class MyActivity. This class will expose the following properties - Name, Start, End, Progress and Children. The complete code for MyActivity.cs (MyActivity.vb in Visual Basic) looks like this:

C#

// MyActivity.cs

class MyActivity
{
    public MyActivity()
    {
        Children = new List<MyActivity>();
    }    public string Name { get; set; }
    public DateTime Start { get; set; }
    public DateTime End { get; set; }
    public double Progress { get; set; }
    public List<MyActivity> Children { get; set; }
}

Visual Basic

' MyActivity.vb

Class MyActivity

    Public Sub New()
        Children = New List(Of MyActivity)()
    End Sub

    Public Property Name() As String
        Get
            Return m_Name
        End Get
        Set(ByVal value As String)
            m_Name = Value
        End Set
    End Property
    Private m_Name As String

    Public Property Start() As DateTime
        Get
            Return m_Start
        End Get
        Set(ByVal value As DateTime)
            m_Start = Value
        End Set
    End Property
    Private m_Start As DateTime

    Public Property [End]() As DateTime
        Get
            Return m_End
        End Get
        Set(ByVal value As DateTime)
            m_End = Value
        End Set
    End Property
    Private m_End As DateTime

    Public Property Progress() As Double
        Get
            Return m_Progress
        End Get
        Set(ByVal value As Double)
            m_Progress = Value
        End Set
    End Property
    Private m_Progress As Double

    Public Property Children() As List(Of MyActivity)
        Get
            Return m_Children
        End Get
        Set(ByVal value As List(Of MyActivity))
            m_Children = Value
        End Set
    End Property
    Private m_Children As List(Of MyActivity)
End Class

2.2 MyDependency class

Create a new class and name it MyDependency. This class will implement the IDependency interface which exposes the following members - From, To and DependencyType. The complete code for MyDependency.cs (MyDependency.vb in Visual Basic) looks like this:

C#

// MyDependency.cs

class MyDependency : IDependency
{
    public MyDependency()
    {
    }

    #region IDependency Members

    public DependencyType DependencyType { get; set; }
    public object From { get; set; }
    public object To { get; set; }

    #endregion
}

Visual Basic

' MyDependency.vb

Class MyDependency
    Implements IDependency

    Public Sub New()
    End Sub

#Region "IDependency Members"

    Public Property DependencyType() As DependencyType Implements IDependency.DependencyType
        Get
            Return m_DependencyType
        End Get
        Set(ByVal value As DependencyType)
            m_DependencyType = Value
        End Set
    End Property
    Private m_DependencyType As DependencyType

    Public Property From() As Object Implements IDependency.From
        Get
            Return m_From
        End Get
        Set(ByVal value As Object)
            m_From = value
        End Set
    End Property
    Private m_From As Object

    Public Property [To]() As Object Implements IDependency.To
        Get
            Return m_To
        End Get
        Set(ByVal value As Object)
            m_To = value
        End Set
    End Property
    Private m_To As Object

#End Region

End Class

2.3 MyResource class

Create a new class and name it MyResource. This class will expose the following properties - Title and Description. The complete code for MyResource.cs (MyResource.vb in Visual Basic) looks like this:

C#

// MyResource.cs

class MyResource
{
    public MyResource()
    {
    }

    public string Title { get; set; }
    public string Description { get; set; }
}

Visual Basic

' MyResource.vb

Class MyResource

    Public Sub New()
    End Sub

    Public Property Title() As String
        Get
            Return m_Title
        End Get
        Set(ByVal value As String)
            m_Title = Value
        End Set
    End Property
    Private m_Title As String

    Public Property Description() As String
        Get
            Return m_Description
        End Get
        Set(ByVal value As String)
            m_Description = Value
        End Set
    End Property
    Private m_Description As String

End Class

2.4 MyAllocation class

Create a new class and name it MyAllocation. Add the following members - Activity, Resource, Start, End and Progress. The complete code for MyAllocation.cs (MyAllocation.vb in Visual Basic) looks like this:

C#

// MyAllocation.cs

class MyAllocation
{
    public MyAllocation()
    {
    }

    public MyActivity Activity { get; set; }
    public MyResource Resource { get; set; }
    public DateTime Start { get; set; }
    public DateTime End { get; set; }
    public double Progress { get; set; }
}

Visual Basic

' MyAllocation.vb

Class MyAllocation
    Inherits MyActivity

    Public Sub New()
    End Sub

    Public Property Activity() As MyActivity
        Get
            Return m_Activity
        End Get
        Set(ByVal value As MyActivity)
            m_Activity = Value
        End Set
    End Property
    Private m_Activity As MyActivity

    Public Property Resource() As MyResource
        Get
            Return m_Resource
        End Get
        Set(ByVal value As MyResource)
            m_Resource = Value
        End Set
    End Property
    Private m_Resource As MyResource

    Public Property Start() As DateTime
        Get
            Return m_Start
        End Get
        Set(ByVal value As DateTime)
            m_Start = Value
        End Set
    End Property
    Private m_Start As DateTime    Public Property [End]() As DateTime
        Get
            Return m_End
        End Get
        Set(ByVal value As DateTime)
            m_End = Value
        End Set
    End Property
    Private m_End As DateTime    Public Property Progress() As Double
        Get
            Return m_Progress
        End Get
        Set(ByVal value As Double)
            m_Progress = Value
        End Set
    End Property
    Private m_Progress As Double

End Class

3. Set up an ActivityChart and a ResourceChart in the main window

From Visual Studio Toolbox drag an ActivityChart and a ResourceChart controls and drop them to the main window area. Customize their properties and name them activityView and resourceView respectively. Next, layout the two charts in the root Grid on two rows. In order to bind the views to the custom created classes, their BindingExpression properties must be set with information pointing to the respective properties to be bound in the model classes. For example the ActivityNameExpression BindingExpression property should point to the Name property in the MyActivity class, the ResourceDescriptionExpression property should point to the Description property of the MyResource class. The complete generated XAML should look similar to the following:

XAML

<Window x:Class="Tutorial5.Window1"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:dataviews="http://mindfusion.eu/dataviews/silverlight"
        Title="Window1" WindowState="Maximized" Height="600" Width="800">
    <Grid>
    <Grid.RowDefinitions>
      <RowDefinition />
      <RowDefinition />
    </Grid.RowDefinitions>

    <dataviews:ActivityChart
      Name="activityView" Grid.Row="0"

      ActivityNameExpression="{Binding Name}"
      ActivityStartTimeExpression="{Binding Start}"
      ActivityEndTimeExpression="{Binding End}"
      ActivityProgressExpression="{Binding Progress}"
      ActivityChildrenExpression="{Binding Children}"

      ResourceTitleExpression="{Binding Title}"
      ResourceDescriptionExpression="{Binding Description}"

      AllocationActivityExpression="{Binding Activity}"
      AllocationResourceExpression="{Binding Resource}"
      AllocationStartTimeExpression="{Binding Start}"
      AllocationEndTimeExpression="{Binding End}"
      AllocationProgressExpression="{Binding Progress}"/>

    <dataviews:ResourceChart Name="resourceView" Grid.Row="1" />
  </Grid>
</Window>

Note
If there will be two or more views that will share a single project, you need to define the binding expressions in only one of the views. As in the above example, these properties are set only for the ActivityChart instance.

4. Create the data

Create some data to be displayed in the views - activities, dependencies, resources and allocations. You can follow the patterns, shown in the previous tutorials, but this time use the newly created custom classes. As the MyActivity class defines a Children property and the chart views are able to display sets of data in hierarchical relationship (See TreeGrid), let's add some subactivities like this:

C#

MyActivity a2 = new MyActivity()
{
    Start = a0.End,
    End = a0.End.AddDays(3),
    Progress = 1,
    Name = "Task 2",
};

a2.Children.Add(new MyActivity() { Name = "SubTask 2.1", Start = a2.Start, End = a2.Start.AddDays(1), Progress = 1 });
a2.Children.Add(new MyActivity() { Name = "SubTask 2.2", Start = a2.Start.AddDays(1), End = a2.Start.AddDays(3), Progress = 1 });

myActivities.Add(a2);

Visual Basic

Dim a2 As New MyActivity() With { _
 .Start = a0.[End], _
 .[End] = a0.[End].AddDays(3), _
 .Progress = 1, _
 .Name = "Task 2" _
}

a2.Children.Add(New MyActivity() With { _
 .Name = "SubTask 2.1", _
 .Start = a2.Start, _
 .[End] = a2.Start.AddDays(1), _
 .Progress = 1 _
})

a2.Children.Add(New MyActivity() With { _
 .Name = "SubTask 2.2", _
 .Start = a2.Start.AddDays(1), _
 .[End] = a2.Start.AddDays(3), _
 .Progress = 1 _
})

myActivities.Add(a2)

5. Create the project and bind the views to the data

Create the IProjectViewModel by calling the CreateViewModel method. Pass the types of the custom classes as parameters to the method like this:

C#

project = activityView.CreateViewModel(myActivities, myDependencies, myResources, myAllocations, typeof(MyActivity), typeof(MyDependency), typeof(MyResource), typeof(MyAllocation));

Visual Basic

project = activityView.CreateViewModel(myActivities, myDependencies, myResources, myAllocations, GetType(MyActivity), GetType(MyDependency), GetType(MyResource), GetType(MyAllocation))

Now the project is created and bound to activityView.All is left to do is to associate the ResourceChart with it:

C#

resourceView.DataContext = project;

Visual Basic

resourceView.DataContext = project

Note
Please note that with this setup the Model will be updated by changes in the View, but the view won't get updated by direct changes to the Model. In order to support two-way data binding, the Model must implement the INotifyPropertyChanged interface and raise the PropertyChanged event when appropriate. For information how to do this, check this article.

6. Build and run

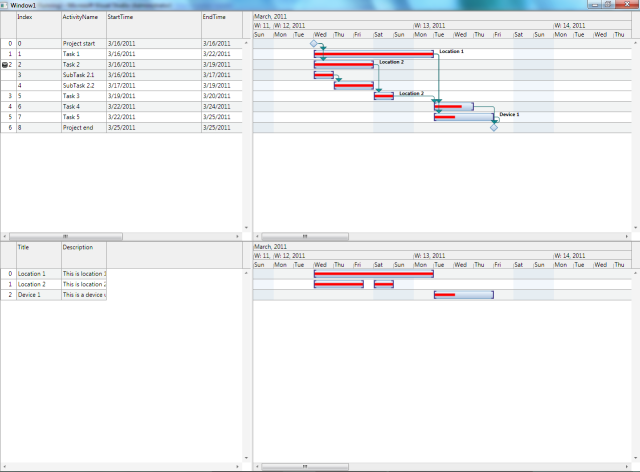

Compile and run the application. The result will be similar to this image:

Note
You can find the complete source code of this tutorial in the product installation folder, under the folder for the appropriate .NET version and language.
