ColorEditor Class

Represents a control that can be used to edit colors in an RGB or HSL format.

Namespace: MindFusion.UI.Wpf
Assembly: MindFusion.Common.Wpf

 Syntax

C#

public class ColorEditor : Control

Visual Basic

Public Class ColorEditor
    Inherits Control

 Remarks

The ColorEditor control represents a standard color editor where colors can be manipulated by modifying their Red-Green-Blue or Hue-Saturation-Luminosity components. The colors can also be picked directly from a palette. The color selected in the editor can be accessed through the SelectedColor property.

 Example

The following code illustrates a ColorEditor control defined in XAML:

XAML

<ui:ColorEditor SelectedColor="LightSteelBlue" />

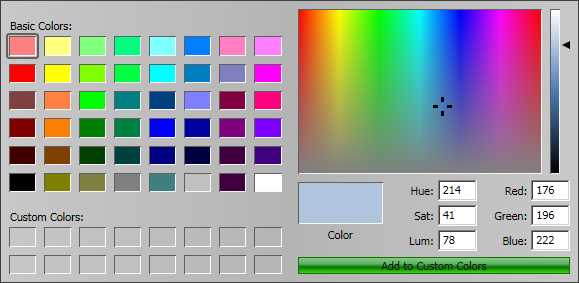

The image below displays the result:

 Inheritance Hierarchy

System.Object
    System.Windows.Threading.DispatcherObject
        System.Windows.DependencyObject
            System.Windows.Media.Visual
                System.Windows.UIElement
                    System.Windows.FrameworkElement
                        System.Windows.Controls.Control
                            MindFusion.UI.Wpf.ColorEditor
