ColorPicker Class

Represents a control that can enable users to select colors from a drop-down palette or through a specialized editor.

Namespace: MindFusion.UI.Wpf
Assembly: MindFusion.Common.Wpf

 Syntax

C#

public class ColorPicker : Control

Visual Basic

Public Class ColorPicker
    Inherits Control

 Remarks

The color displayed in the control can be get or set through the SelectedColor property.

When the drop down panel is initially open, it displays a palette with predefined colors. The user can left-click on any of the colors to select it in the picker. In addition the user can right-click on one of the color boxes to display a custom color editor inside the drop-down panel.

 Example

The following code illustrates a ColorPicker control defined in XAML:

XAML

<ui:ColorPicker SelectedColor="LightSteelBlue" />

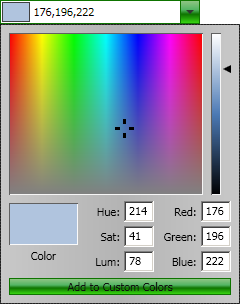

The image below displays the picker with its drop-down open:

 Inheritance Hierarchy

System.Object
    System.Windows.Threading.DispatcherObject
        System.Windows.DependencyObject
            System.Windows.Media.Visual
                System.Windows.UIElement
                    System.Windows.FrameworkElement
                        System.Windows.Controls.Control
                            MindFusion.UI.Wpf.ColorPicker
