Version History
The list below describes past changes and additions to MindFusion Virtual Keyboard:
The Virtual Keyboard distribution now includes assemblies for .NET 6. Locally installed assemblies don't show automatically in toolbox at this time, you can add them to projects either manually or through Nuget package manager.
The Virtual Keyboard distribution now includes assemblies for .NET 5. Locally installed assemblies don't show automatically in toolbox at this time, you can add them to projects either manually or through Nuget package manager.
The Virtual Keyboard distribution now includes assemblies for .NET Core 3.1. Locally installed assemblies don't show automatically in toolbox at this time, you can add them to projects either manually or through Nuget package manager.
The component now supports general IME mode that maps raw input sequence to dictionary entries. The keyboard collects clicked characters in a staging area and shows the matching entries as suggestions. Users can either click a suggestion button to send its content as input, or click the space key to send the first suggestion.
To enable IME mode, call the LoadImeTable method, specifying the language for which to load IME table and the dictionary file path. The table file format contains one line per entry, with three tab delimited values: raw input, translation, frequency. For example, a hypothetical IME table that translates chemical formulas to compound's common name could look like this:
C#
 Copy Code
|
|---|
| c3h8o Propan-2-ol 2 c3h8o Propanol 4 h2o Water 1 c3h8o Methoxyethane 1 c3h8o Propan-1-ol 3 c2h6 Ethane 1 c3h7br 1-bromopropane 3 c3h7br 2-bromopropane 2 .... vk.LoadImeTable( new CultureInfo("en-US"), "chemical.txt"); |
and suggestions for the partial input "c3h" will look like this:
The component can parse IME tables from the Linux Ibus project to implement various Chinese transliteration systems. For example you can load following tables for respectively mainland China's simplified Chinese, Taiwan's traditional Chinese and Hong-Kong's Cangjie input methods:
Zhuyin
https://github.com/definite/ibus-table-chinese/blob/master/tables/zhuyin.txt
Cangjie
https://github.com/definite/ibus-table-chinese/blob/master/tables/cangjie/cangjie3.txt

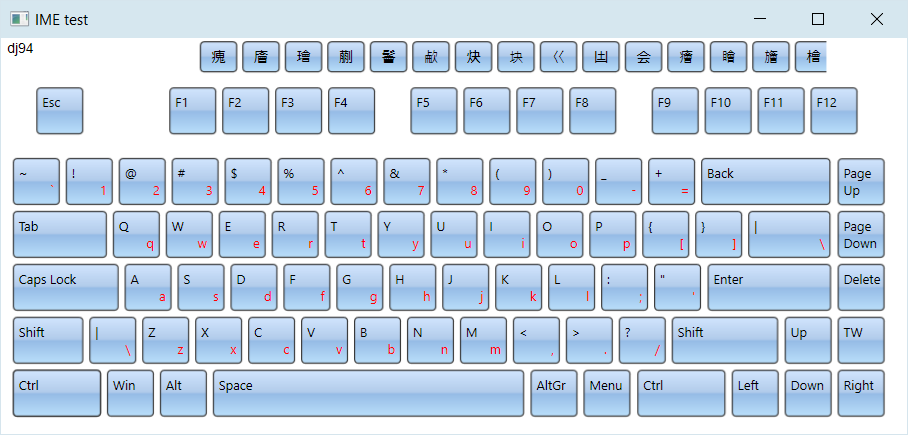

The following image shows the Zhuyin input method:
If current language is Japanese, the keyboard renders Hiragana characters. In addition, LoadImeTable can parse tables from Google's mozc project to convert Hiragana to Kanji. To enable this mode, specify path to a directory containing the 10 dictionary files from following link:
https://github.com/google/mozc/tree/master/src/data/dictionary_oss

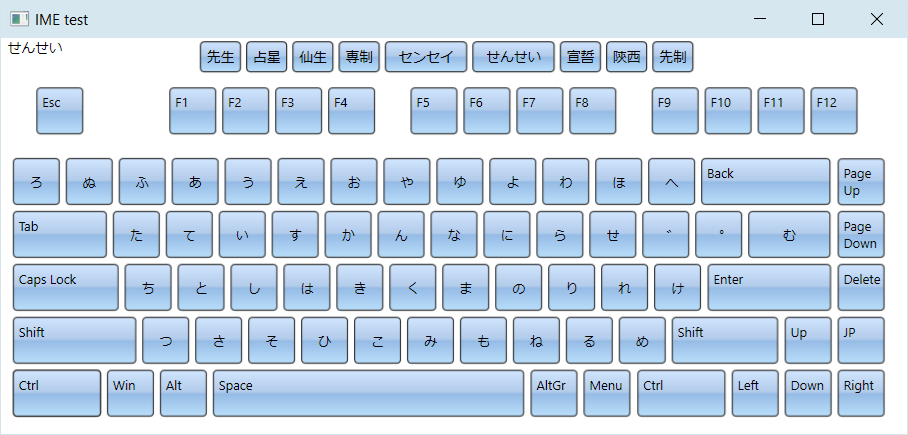

This image demonstrates Hiragana to Kanji conversion:

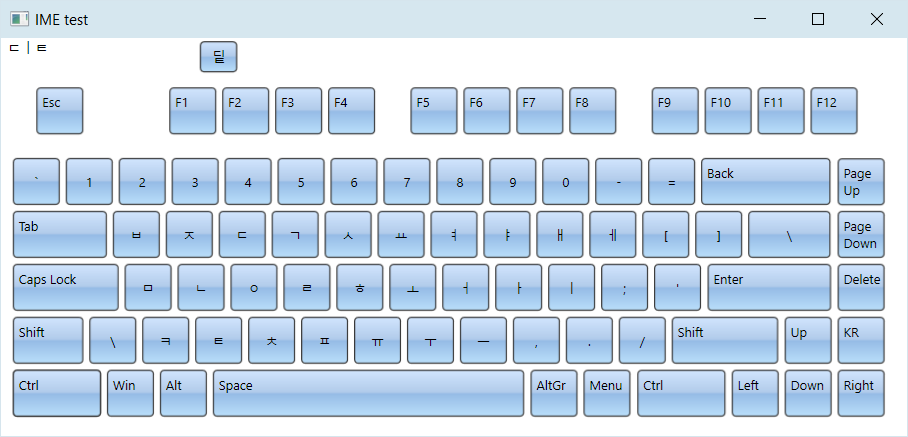

The keyboard renders Hangul letters when current language is Korean, and automatically enables IME mode that converts letter sequences to Hangul syllabic blocks according to Unicode rules:
Note that the open source Chinese and Japanese dictionaries linked above have licensing terms of their own - some are in the public domain, some include attribution / no warranty clauses, some are LGPL. For licensing terms, check comments in respective dictionary files or license sections of their parent project. If there is enough interest, we will provide built-in dictionaries on MindFusion's standard licensing terms for next releases.
The control no longer updates CurrentCulture of UI thread automatically to match current input language. This could lead to subtle bugs in applications' text parsing and formatting code when culture-dependent delimiters and string formats change together with the input language. To better match its purpose and Windows terminology, the old CurrentCulture property of VirtualKeyboard has been renamed to InputLocale. To get the old behavior back where current culture follows input language, set the AutoUpdateCulture property to true.
The AutoRepeat property lets you disable or enable auto-repeat. The RepeatDelay and RepeatRate properties let you customize auto-repeat timing.
